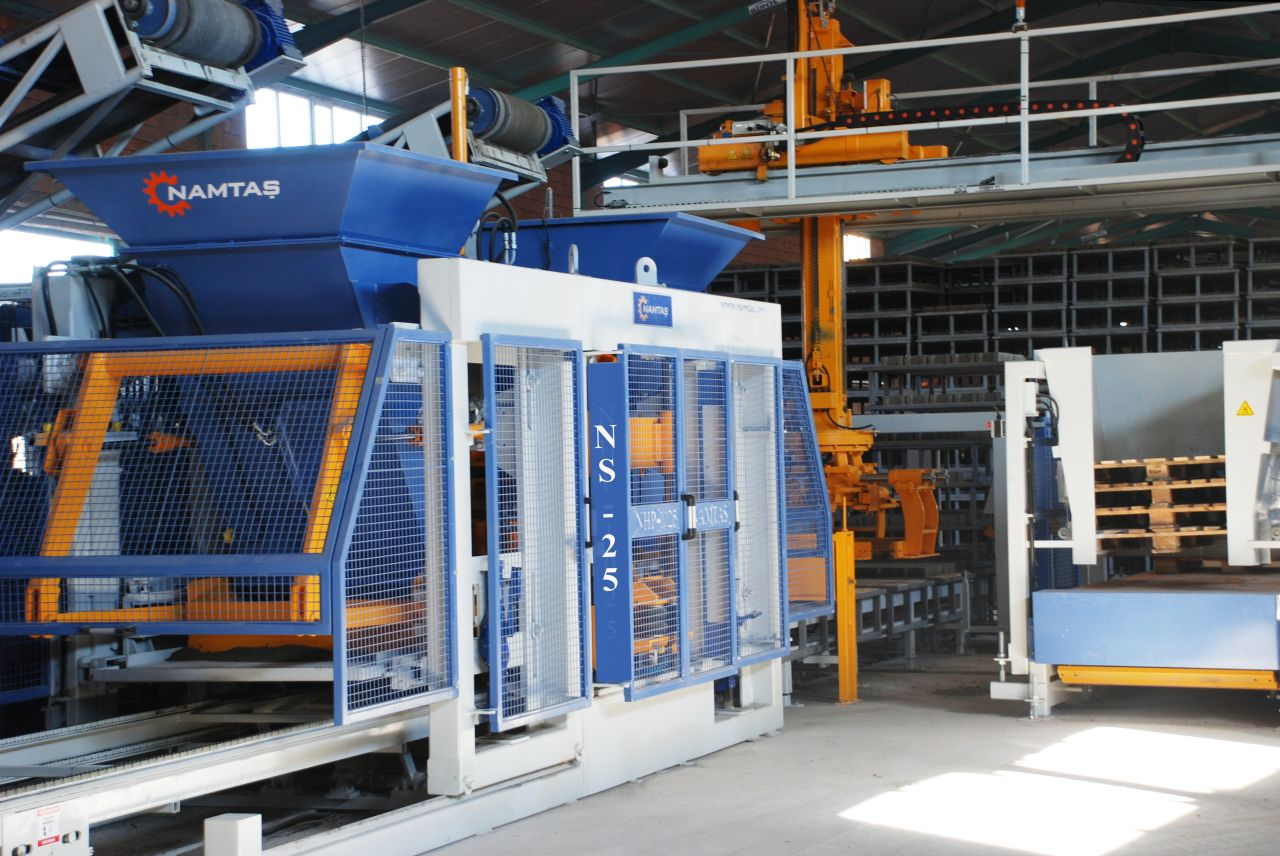

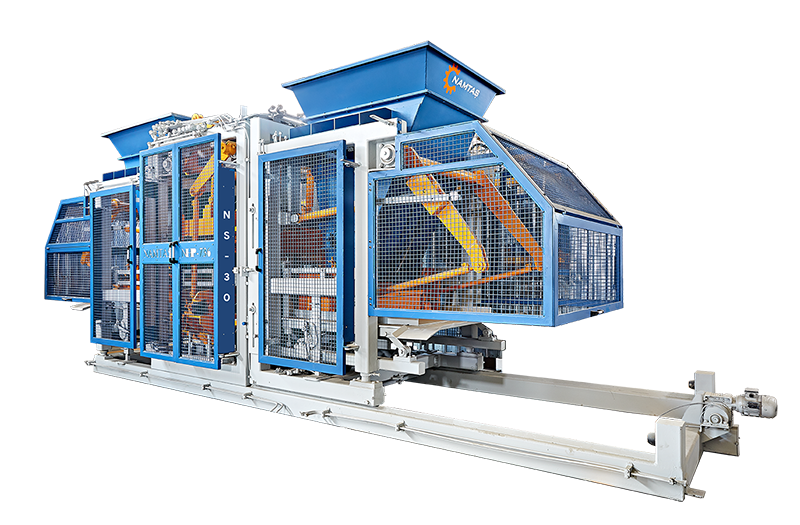

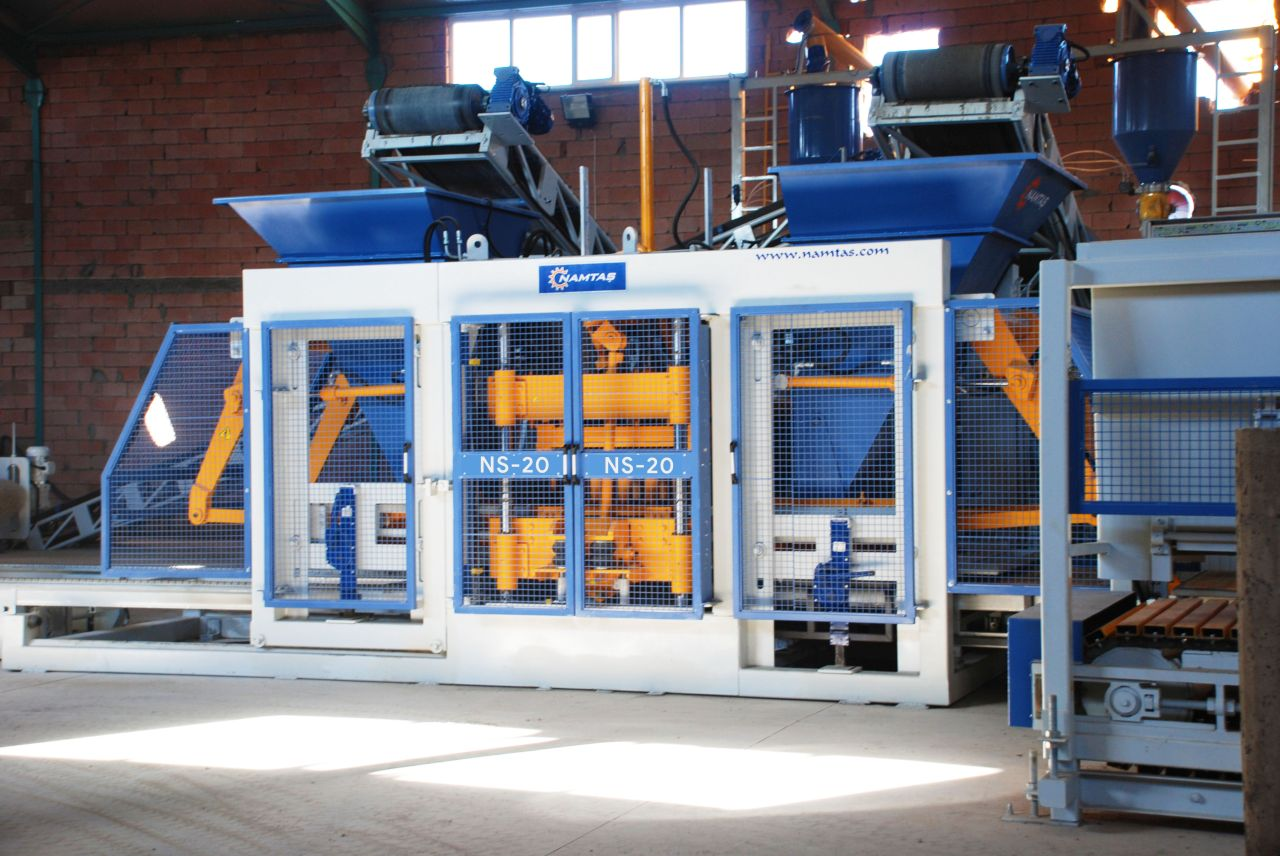

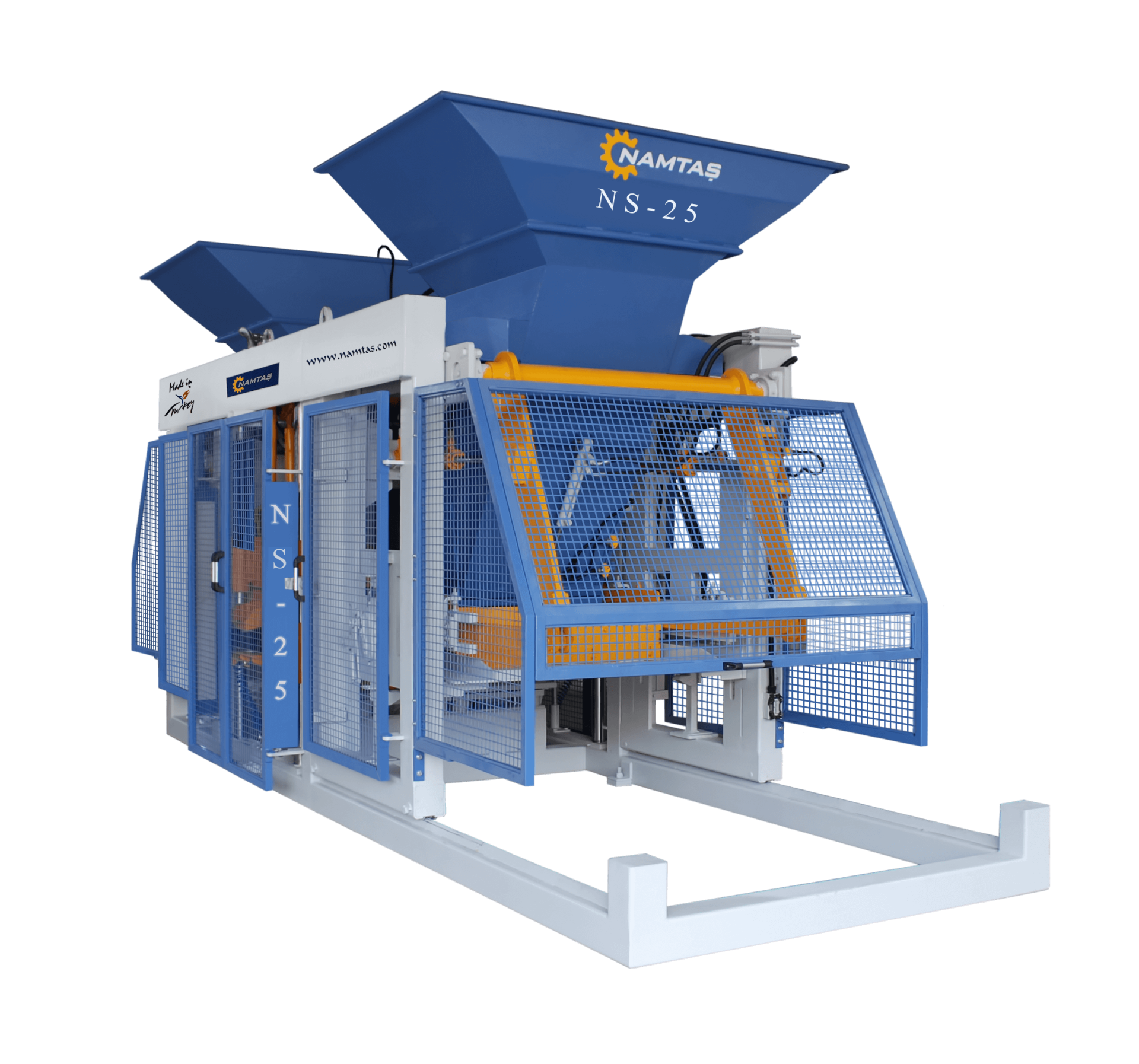

NS-30/25/20
MEDIUM PERFORMANCE CONCRETE BLOCK MACHINES

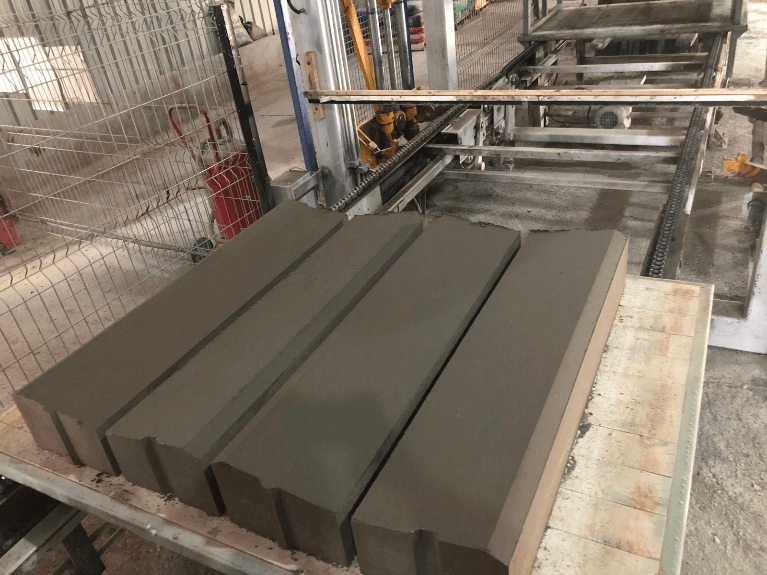

Automatic single-layer medium performance concrete block machines NS-30, NS-25 and NS-20 are reliable time-proven machines designed specifically for those investors and entrepreneurs, who want to start the production of different types of high-quality concrete masonry and hardscape units with minimum financial input. These machines can manufacture pavers, curbstones, hollow and solid concrete blocks (including lightweight and insulated type), rain gutters, filler blocks etc. from 60 to 300 mm in height.
PLC CONTROLLED AUTOMATION SYSTEM
Sophisticated PLC-based automation system developed by Namtaş is responsible for a smooth and trouble-free production cycle, allowing to achieve the same quality and quantity of concrete products during every working shift. NT series machines are also equipped with remote control and service adapter, used by Namtaş technical support specialists in case of line’s malfunction for system check or troubleshooting software issues.
Machines
Control
Pallet Dimensions (mm)
Usable Area on Pallet (mm)
Maximum Product Height (mm)
Minimum Product Height (mm)
Frame Weight
Total Electric Motor Powers (kW)
MEDIUM PERFORMANCE CONCRETE BLOCK MACHINES
Fully Automatic (PLC)
950 x 1200
850 x 900
200
60
8500
78,7
